PTV - Vehicle Profile Conditions

General

This page provides an overview of the various parameters that PTV uses to determine and calculate routes, toll charges and emissions.

Tip
  • It is not possible to change settings on existing configurations. Create new PTV - Vehicle Profile and add PTV Vehicle Profile Conditions with the appropiate values.
  • The values are subject to change. For the most up-to-date values, please consult the PTV Developer API reference. We do not provide support for results returned by the API.

Functionality

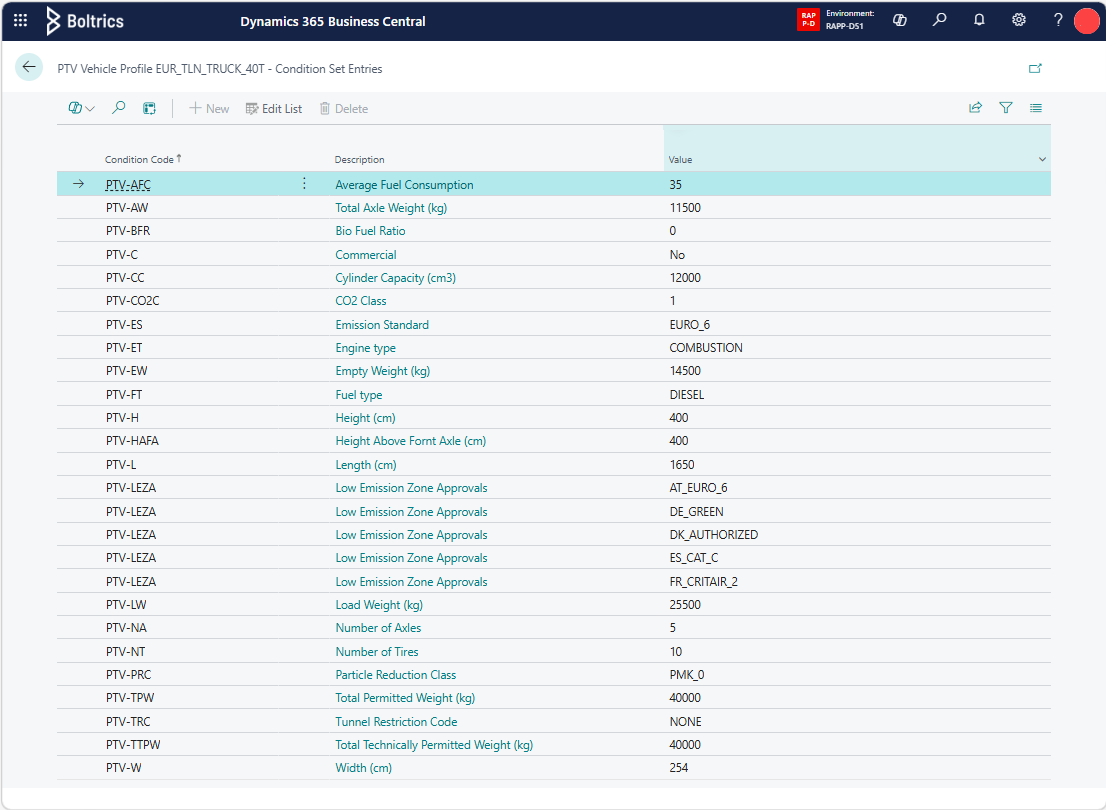

PTV Vehicle Profile Conditions

Fields
  • PTV-AEC: Average Electricity Consumption, number (l/100km, >0)
  • PTV-AFC: Average Fuel Consumption, number (kWh/100km, >0)
  • PTV-AW: Total Axle Weight (kg), integer (kg)
  • PTV-BFR: Bio Fuel Ratio, number (0.0- 1.0)
  • PTV-C: Commercial, boolean
  • PTV-CC: Cylinder Capacity (cm3), Integer (cm³, > 0)
  • PTV-CO2C: CO2 Class, CO2_CLASS_1 … CO2_CLASS_5
  • PTV-DFR: Dual Fuel Ratio, number (0.0 – 1.0)
  • PTV-ES: Emission Standard, EURO_0 … EURO_6E
  • PTV-ET: Engine type, options: COMBUSTION, HYBRID, ELECTRIC
  • PTV-ETCS: Etc Subscriptions, array of ETC_SUBSCRIPTION_TYPE
  • PTV-EW: Empty Weight (kg), Integer (kg, > 0)
  • PTV-FT: Fuel , options: DIESEL, GASOLINE, ETHANOL, LPG, CNG, LNG, CNG_GASOLINE, LPG_GASOLINE
  • PTV-H: Height (cm), number (cm) >0
  • PTV-HAFA: Height Above Fornt Axle (cm), number (cm) >0
  • PTV-HM: Hazardous Materials, array of HAZARDOUS_MATERIAL_TYPE
  • PTV-HR: Hybrid Ratio, number (0.0 - 1.0)
  • PTV-L: Length (cm), number (cm) >0
  • PTV-LEZA: Low Emission Zone Approvals, array of LOW_EMISSION_ZONE_TYPE (enum)
  • PTV-NA: Number of Axles, integer (>=2)
  • PTV-NT: Number of Tires, integer ()
  • PTV-PRC: Particle Reduction Class, Options: NONE, PM1, PM2, PM3, PM4
  • PTV-TPW: Total Permitted Weight (kg), integer (kg)
  • PTV-TR: Truck Routes, boolean
  • PTV-TRC: Tunnel Restriction Code, options: A, B, C ,D, E
  • PTV-TTPW: Total Technically Permitted Weight (kg), integer (kg)
  • PTV-W: Width (cm), number (cm) >0

Impact conditions

The following overview shows whether the conditions affect the following components: route calculation, tolls and emissions

Condition Description Route Calculation Toll Emission Allowed Values (API)
Engine Type Type of Engine Y N N COMBUSTION, HYBRID, ELECTRIC
Fuel Type Type of Fuel Y N N DIESEL, GASOLINE, ETHANOL, LPG, CNG, LNG, CNG_GASOLINE,LPG_GASOLINE
Average Fuel Consumption Averaged fuel Consumption(l/100 km) Y N N Number ((l/100 km, >0))
Average Electricity Consumption Averaged Electric Consumption(kWh/100 km) Y N N Number (kWh/100 km, >0)
Bio Fuel Ratio The proportion of biofuel in the fuel mix Y N N Number (0.0 - 1.0)
Hydro Fuel Ratio Breakdown of electric vs. combustion power in hybrid vehicles. Y N N Number (0.0 - 1.0)
Dual Fuel Ratio Ratio between two fuels (e.g. LNG/diesel). Y N N Number (0.0 - 1.0)
Cylinder Capacity Engine capacity. Y N N Integer (cm³, > 0)
Emission Standard Emissions standard (EURO 4/5/6). Y Y Y EURO_0 … EURO_6E
CO2 Emission Class CO₂ class for regulatory and tolling models. Y Y Y CO2_CLASS_1 … CO2_CLASS_5
Low Emisson Zone Approvals Access to low-emission zones N Y N Array of LOW_EMISSION_ZONE_TYPE (enum)
Particle Resuction Classs Reduction of particulate matter (e.g. particulate filter). Y Y N NONE, PM1, PM2, PM3, PM4
Empty Weight Empty weight of the vehicle. Y Y Y Integer (kg, > 0)
Load Weight Weight of the load. Y Y Y Integer (kg >= 0)
Total Permitted Weight Maximum legally permitted weight. N Y Y Integer (kg)
Total Technical Permitted Weight Maximum technical weight of the vehicle. N Y Y Integer (kg)
Axle Weight Weight per axle. N Y Y Integer (kg)
Number of Axles Number of Axles. N Y Y Integer (>= 2)
Number of Tires Number of Tires. N N Y Integer
Height Total vehicle height. N Y N Number (cm) > 0
Height Above Front Axle Height from the front axle (technical/aerodynamic). N Y N Number (cm) >0
Length Overall vehicle length. N Y N Number (cm) >0
Width Vehicle width. N Y N Number (cm) >0
Hazardous Materials Transport of dangerous goods (ADR). N Y N Array of HAZARDOUS_MATERIAL_TYPE
Tunnel Restriction Code Tunnel category (ADR codes). N Y N A, B, C, D, E.
Truck Routes Use of mandatory/recommended truck routes. N Y N Boolean
Commercial Routes Indicates that this is commercial transport. N Y Y Boolean
ETC SUbscriptions Electronic toll subscriptions (EETS, etc.). N N Y Array of ETC_SUBSCRIPTION_TYPE
