Calculation Method

General

On the page : PTV Calculation Methods various methods can be set to be applied when calculation Trips.

Tip

For more detailed documentation see: PTV Documentation

Functionality

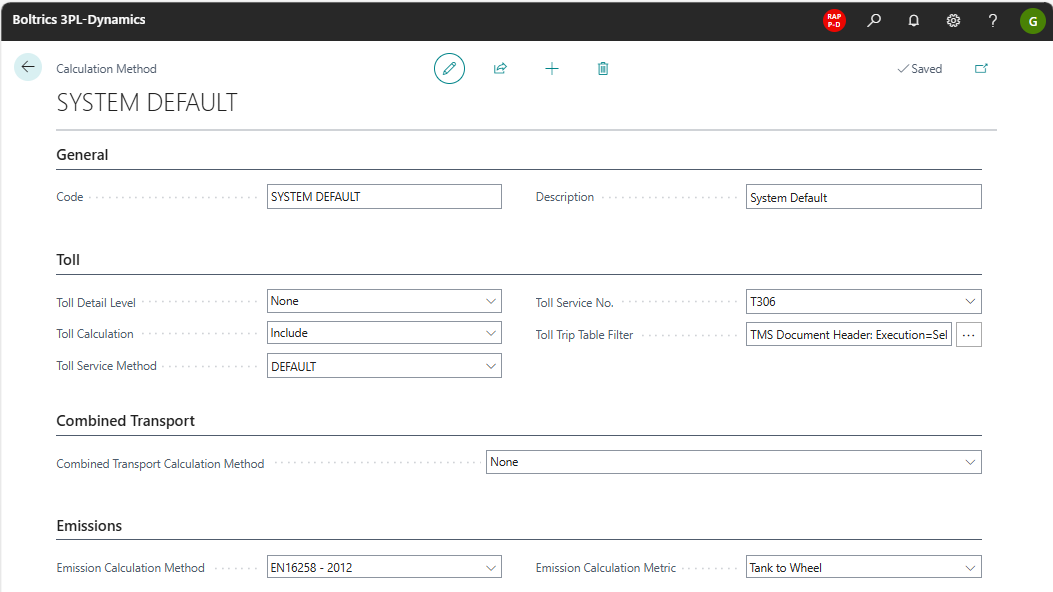

calculation Method

Fields

• Tab: General
  • Code: an unique code for the method
  • Description: the description of the method
• Tab: Toll
  • Toll Detailed Level: options: Country & Sections, on what level the Toll has to be presented
  • Toll Calculation: select if Toll Calculation has to be included or excluded
  • Toll service Method: create a method if specific toll-services are required on specific trips. See Toll Service Method
  • Toll Service No.: select the default Service no. to be applied on Toll-calculation-Entries, leave this field blank if the field: Toll Service Methode is filled in
  • Toll Trip Table Filter: by appling a filter only on specific trips Toll-costs are being calculated, for instance on Execution: SELF|CHARTER
• Tab: Combined Transport
  • Comb. Trans. Calc. Method : select one of the following options:
    - None: Only Road-transport.
    - Include: Includes intermodal by ferry and rail.
    When selected the route will be shown in the field: Combined Transport in the Trip Activities.
    - Avoid Rail: Includes intermodal by ferry.
    - Avoid Boat: includes intermodal by rail
• Tab: Emissions
  • Emission Calculation Methode: select on of the following options:
    - EN16258 - 2012.
    - French CO2e Decree 2017 - 639.
    - ISO14083 - 2023
  • Emission Calculation Metric: select on of the following options:
    - Tank to Wheel: The emission refers to the consumption during the Trip.
    - Well to Wheel: The emission from the production of the fuel to the fuel consumption during the Trip

---

Toll Service Method

By setting up a Toll Service Method, specific servicecodes can be determined for the toll-calculation-entries on a trip. For example based on the country in which a trip is ending or the plandepartment of a trip.

Fields

• Code: The unique code for the Toll Service Method.
• Description: The description of the Toll Service Method.
• Default Service No.: If no match can be found for a trip due to the table filter and/or criteria function set on the lines, the Default Service No. will be applied.
• Sequence: The sequence in which the lines are applied.
• Service No.: The Service No. to be applied to the Toll Calculation Entries when a line is applicable to the trip.
• Table Filter: A filter can be set so that a specific Service No. is applied to the Toll Calculation Entries.
• Criteria Function Set: A function can be set so that a specific Service No. is applied to the Toll Calculation Entries.

Note

Only one Toll Service Method can be set up. The Toll Service Method may contain multiple lines.
