3PL Market Place Demo Data - TMS Contract Strategy

General

By installing the 3PL Market Place app: TMS Contract Strategy (Demo Data) a set of records will be imported into the 3PL Dynamics company.

Warning

Be careful to activate APPs in a LIVE production environment. Existing setup/configuration will be overwritten by activating the APP.

Functionality

The app contains the following Contract Strategies and Contracts:

Contract Strategy No. Customer No. Contract No. Description
TCS0001 CUS00001 TC000005
TC000007
TC000001

TC000002
TC000003
TC000004		 Dedicate / Milk Run Trips containing rates per kilometer based on Truck or HGV
Surcharges on orders containing ADR, Tail Lift, UL Strick, UL UPTO 09 and Weekend
Transport rates on orders NL - BE containing 2 regions Belgium North and South based on Postcodes. Including the Brussels Toll Surcharge
Transport rates on orders NL - NL containing 10 (regions based on the postcodes
Transport rates on orders NL - LU containing 1 region based on Country Code
Transport rates on orders NL - DE containing 3 region based on Postcodes. Including the German Maut
TCS0002 CUS00002 TC000006 Transport rates on linked orders NL - NL based on FTL (linked orders) and LTL (normal orders)
Note

The following app must be installed before installing the app: TMS Contract Strategy (Demo Data).

Best Practice Examples

General order and revenue

When creating an order with the data as shown in the example automatically revenues will be created when changing the orderstatus to 15-CALCULATE

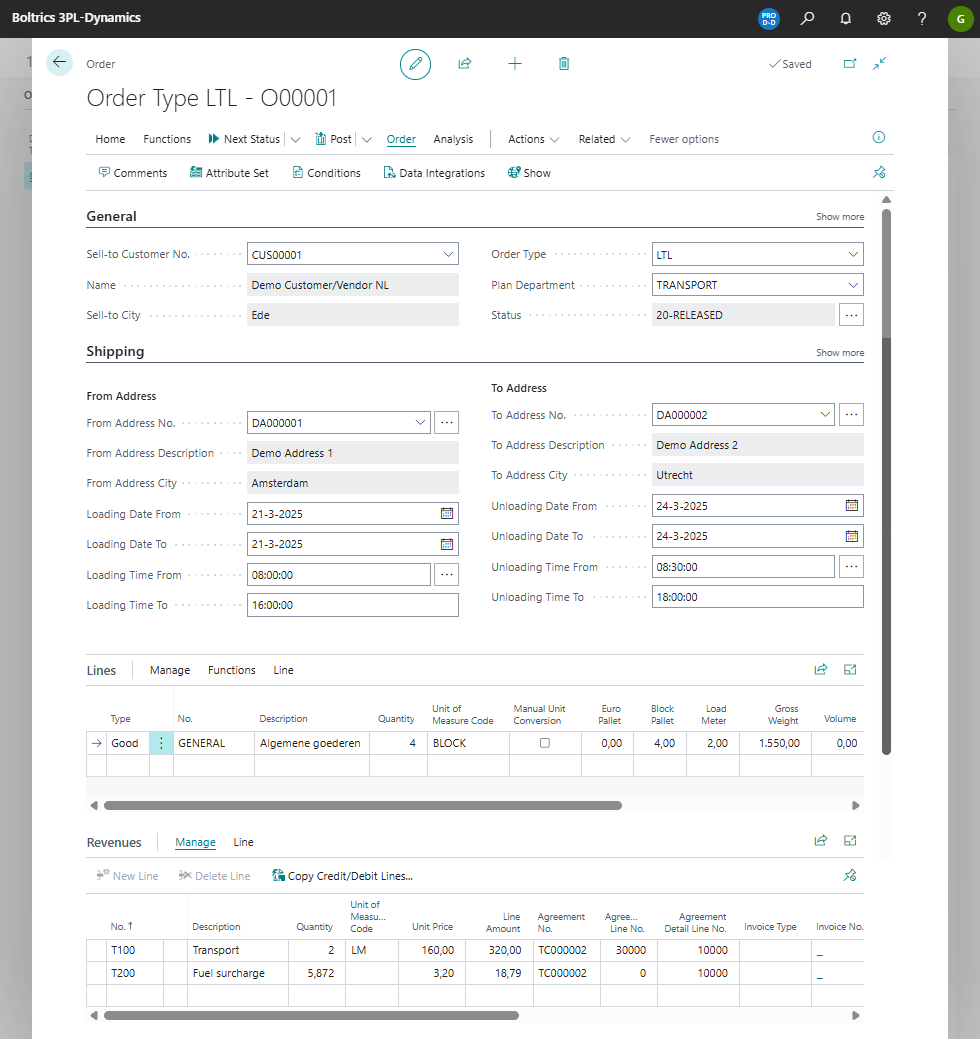

Example General order incl. Revenue

Note

If no revenues appear on the revenue check the following:

Order with condition ADR: Yes

When creating an order with the data as shown in the example automatically revenues including an ADR Surcharge will be created when changing the orderstatus to 15-CALCULATE

Example order condition ADR

Note

If no revenues appear on the revenue check the following:

  • Open the page: Transport Setup Tab: General and check the value in field: Contract Price Search Date.
  • Open the page: Transport Setup Tab: Contract Strategy and check the value in the field: Contract Strategy Logging. If set to: Enabled open the log on the order by clicking on: Order>Related>Order>Contract Strategy Log.
  • Click on the Action: Order > Conditions and check if the condition ADR is set to: Yes
  • Open the Status Template of the TMS_ORDER > 15-CALCULATE and check if the line with the condition function set: ADR contains the value: Yes.

Order with condition Tail Lift: Yes

Before creating an order with the data as shown in the example first add the conditon Taillift to From Address or To Address so automatically revenues, including a Tail Lift Surcharge, will be created when changing the orderstatus to 15-CALCULATE

Example order condition: Tail Lift

Note

If no revenues appear on the revenue check the following:

  • Open the page: Transport Setup Tab: General and check the value in field: Contract Price Search Date.
  • Open the page: Transport Setup Tab: Contract Strategy and check the value in the field: Contract Strategy Logging. If set to: Enabled open the log on the order by clicking on: Order>Related>Order>Contract Strategy Log.
  • Click on the lookup in the field: From Address No. and Show Details to open the card. Click on the action: Home>Conditions and check if the Conditon Taillift is set to: Yes.
  • Click on the lookup in the field: To Address No. and Show Details to open the card. Click on the action: Home>Conditions and check if the Conditon Taillift is set to: Yes.
  • Click on the Action: Order > Conditions and check if the condition: Tail Lift is set to: Yes
  • Open the Status Template of the TMS_ORDER > 15-CALCULATE and check if the line with the condition function set: Tail Lift contains the value: Yes.

Order with condition UL STRICK: Yes

When creating an order with the data as shown in the example automatically revenues, including an Unloading Stickt Surchage will be created when changing the orderstatus to 15-CALCULATE

Example order condition UL STRICKT

Note

If no revenues appear on the revenue check the following:

  • Open the page: Transport Setup Tab: General and check the value in field: Contract Price Search Date.
  • Open the page: Transport Setup Tab: Contract Strategy and check the value in the field: Contract Strategy Logging. If set to: Enabled open the log on the order by clicking on: Order>Related>Order>Contract Strategy Log.
  • Check that the duration of the unloading window is less then 15 minutes.
  • Click on the Action: Order > Conditions and check if the condition UL Strick is set to: Yes
  • Open the Status Template of the TMS_ORDER > 15-CALCULATE and check if the line with the condition function set: UL Strickt contains the value: Yes.

Order with condition UL UPTO 09: Yes

When creating an order with the data as shown in the example automatically revenues, including an unloading before 09:00 surcharge will be created when changing the orderstatus to 15-CALCULATE

Example order condition UL UPTO 09

Note

If no revenues appear on the revenue check the following:

  • Open the page: Transport Setup Tab: General and check the value in field: Contract Price Search Date.
  • Open the page: Transport Setup Tab: Contract Strategy and check the value in the field: Contract Strategy Logging. If set to: Enabled open the log on the order by clicking on: Order>Related>Order>Contract Strategy Log.
  • Check that the duration of the field: Unlaoding Time To unloading* contains a value before 09:00 AM.
  • Click on the Action: Order > Conditions and check if the condition UL UPTO 09 is set to: Yes
  • Open the Status Template of the TMS_ORDER > 15-CALCULATE and check if the line with the condition function set: UL UPTO 09 contains the value: Yes.

Order unloading weekend

When creating an order with the data as shown in the example automatically revenues, including an surcharge for unloading in the weekend will be created when changing the orderstatus to 15-CALCULATE

Example order Weekend Unloading

Note

If no revenues appear on the revenue check the following:

  • Open the page: Transport Setup Tab: General and check the value in field: Contract Price Search Date.
  • Open the page: Transport Setup Tab: Contract Strategy and check the value in the field: Contract Strategy Logging. If set to: Enabled open the log on the order by clicking on: Order>Related>Order>Contract Strategy Log.
  • Check that the the fields: Unlaoding Date From contains a value which is a Saterday or a Sunday.
  • Open the Status Template of the TMS_ORDER > 15-CALCULATE and check if the line with the condition function set: UL UPTO 09 contains the value: Yes.
